• Features a Japanese baffle plate

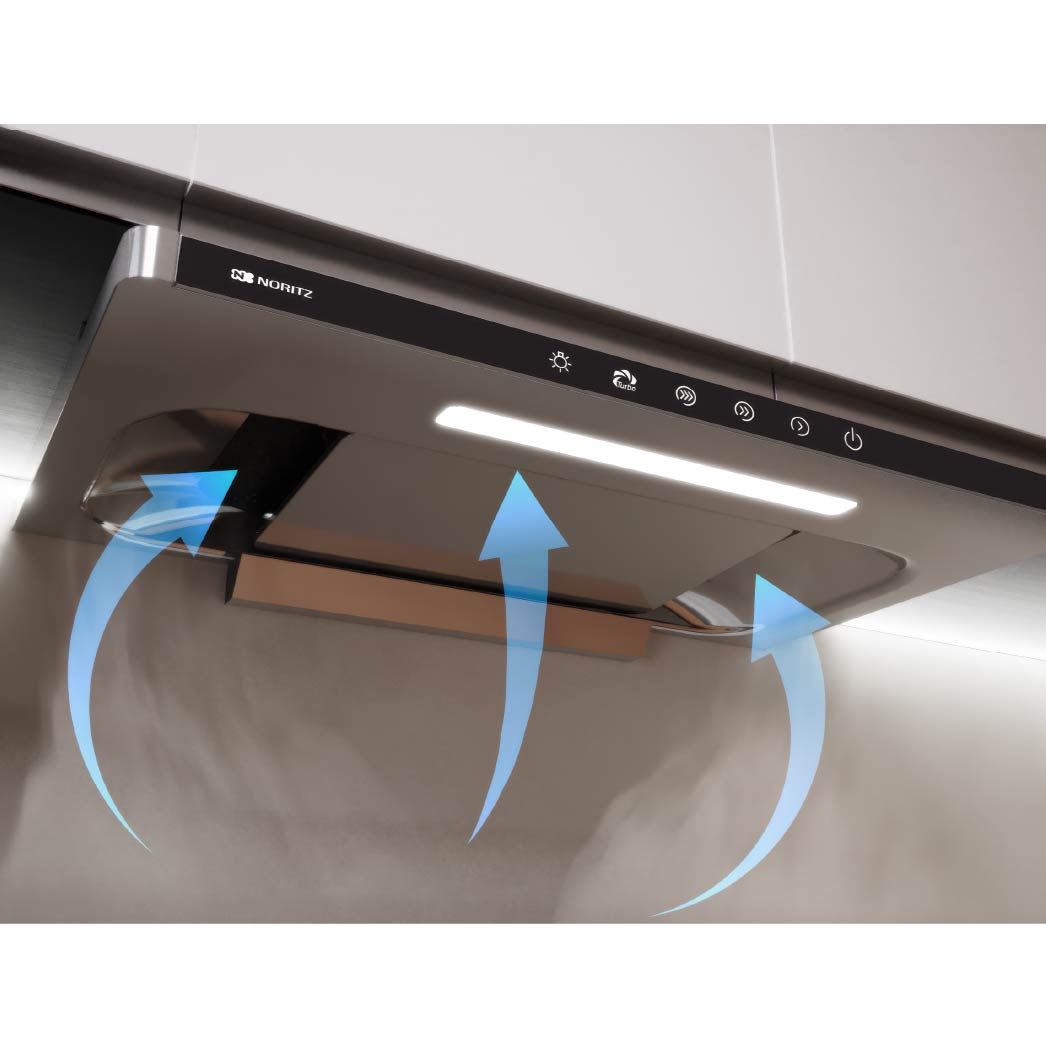

  Increased suction power efficiently catches oily smoke

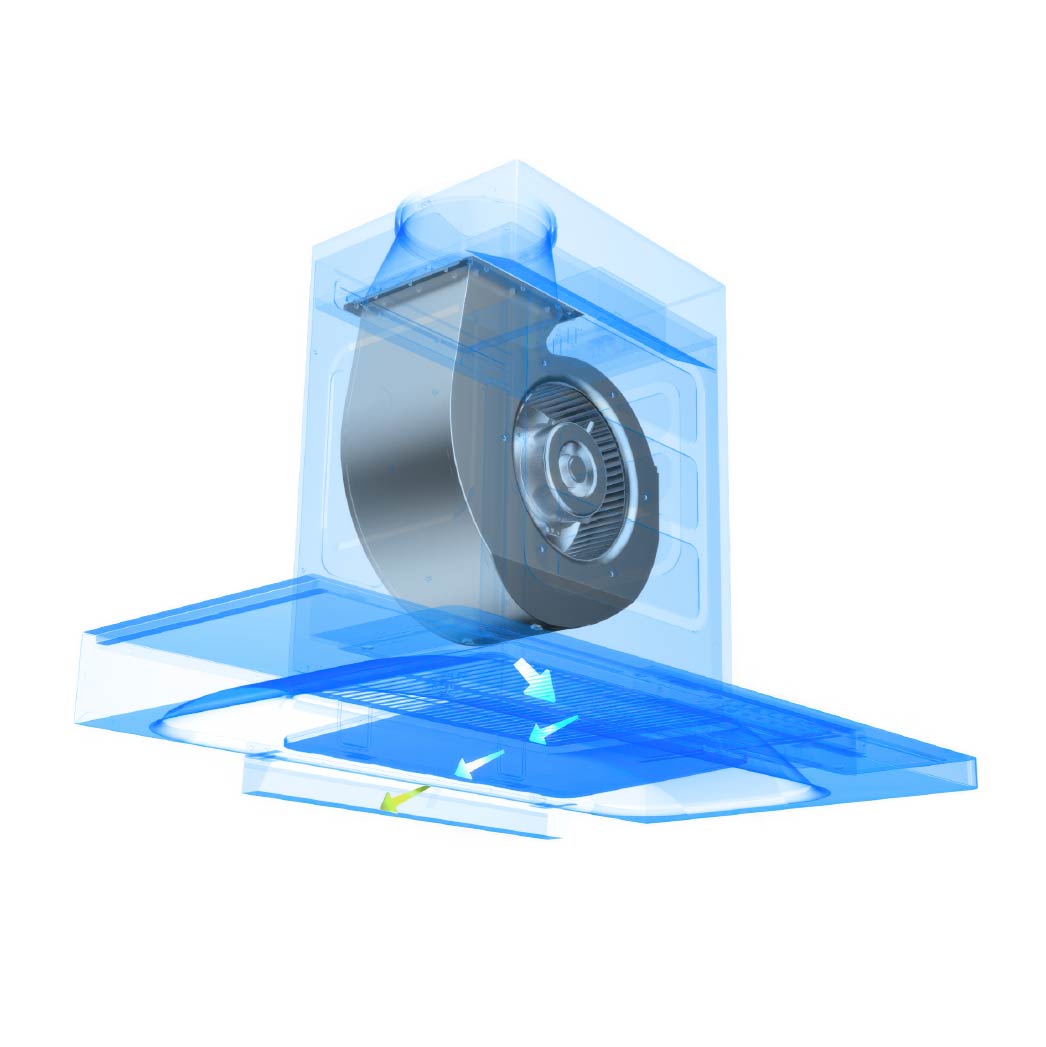

  This range hood employs a baffle plate that increases suction power by accelerating the flow velocity at the intake.



• Design incorporating many curved surfaces

  For easier care and maintenance

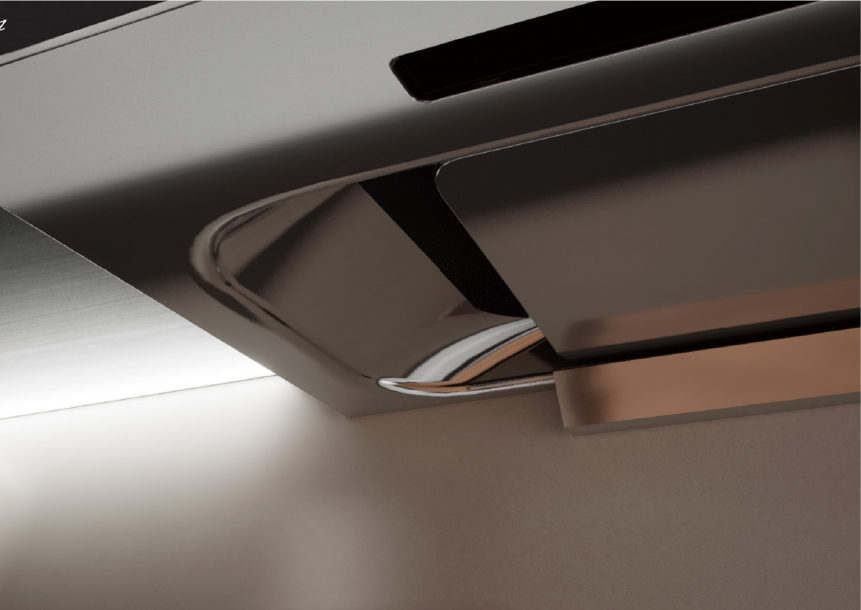

  Each part is designed with many curved surfaces to make it easy to wipe off residue. The exterior corners are also rounded to prevent injury in the event of a collision.



• Features an automatic cleaning function inside the range hood

  Making housework easy

  An automatic cleaning function automatically discharges oily residue that has accumulated inside the fan and other areas into an oil tray. Therefore, the only routine maintenance needed is to clean the oil tray.

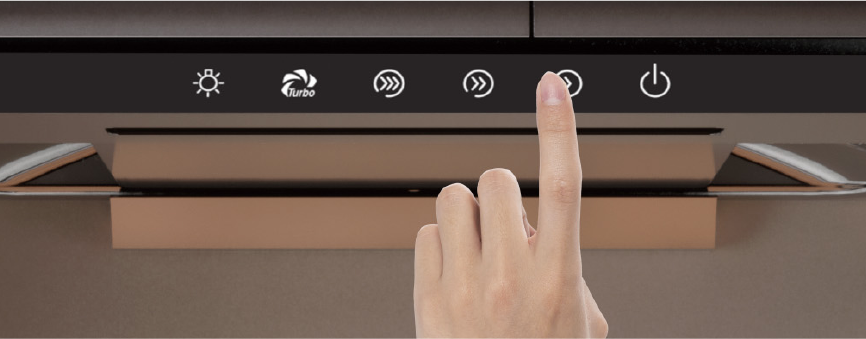

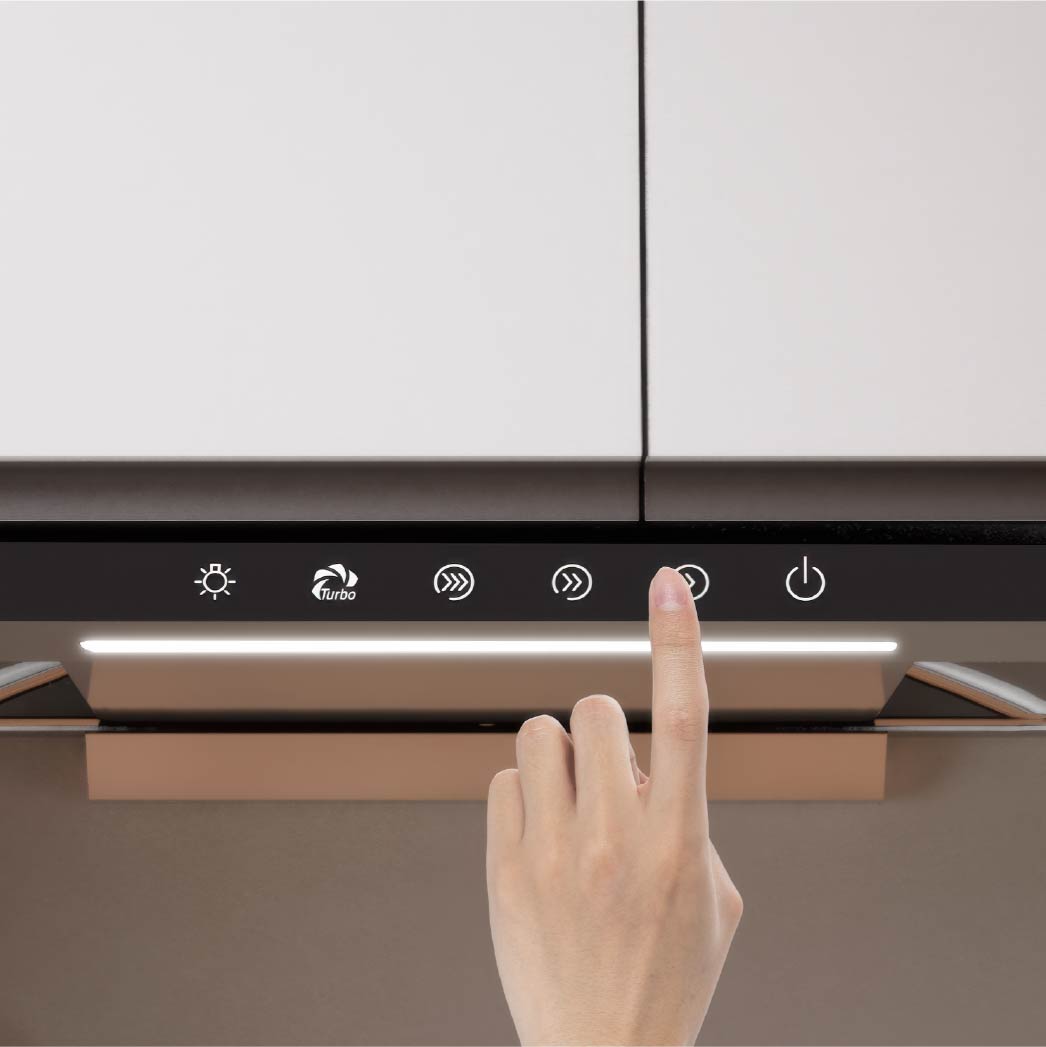

• Touch panel offers easy adjustment of settings



CR-NA501A

• Operation	Quiet operation (5 m³/min), motion control
  Automatic cleaning	Heater-assisted cleaning
  Front color	SUS
  Control panel material	Tempered glass
  Body material	SUS
  Operation method	Touch panel type / Motion sensor type
  Airflow (High)	17 m³/min
  Airflow (Turbo)	20 m³/min
  Maximum static pressure	400 Pa
  Power source	220 V / 50 Hz
  Drive method	Single motor
  Speed adjustment	Turbo / High / Medium / Low (quiet)
  Lighting method	LED lighting

• Lighting output	1×4W
  Motor rated input	300W
  Overall rated input	480W
  Heater output	85W
  Exhaust pipe hood	382×320
  Exhaust port diameter	Φ180 mm
  Exhaust pipe material	Aluminum foil
  Exhaust pipe length	1.5 m
  External dimensions	895×500×589 mm
  Packing dimensions	997×693×627 mm
  Net weight	20 kg
  Gross weight	25 kg
