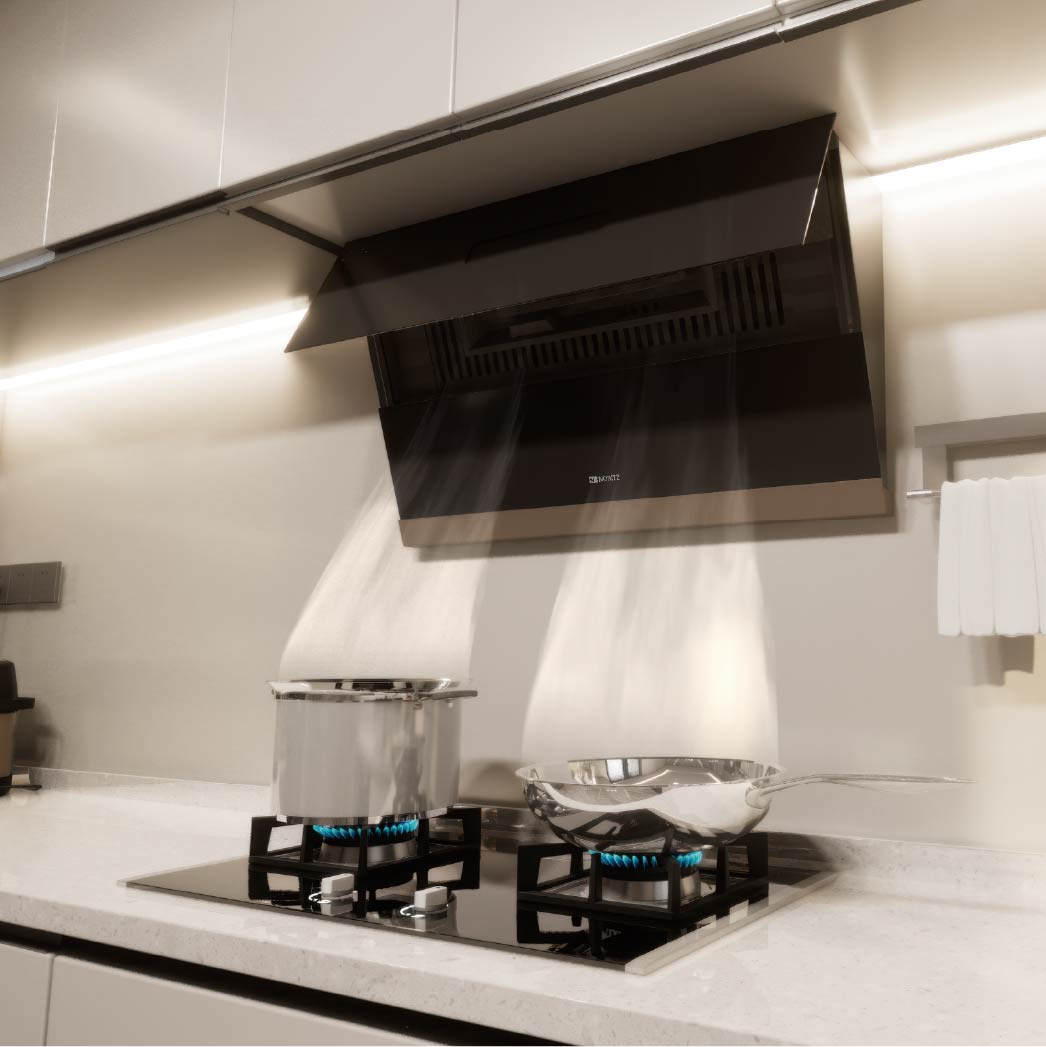

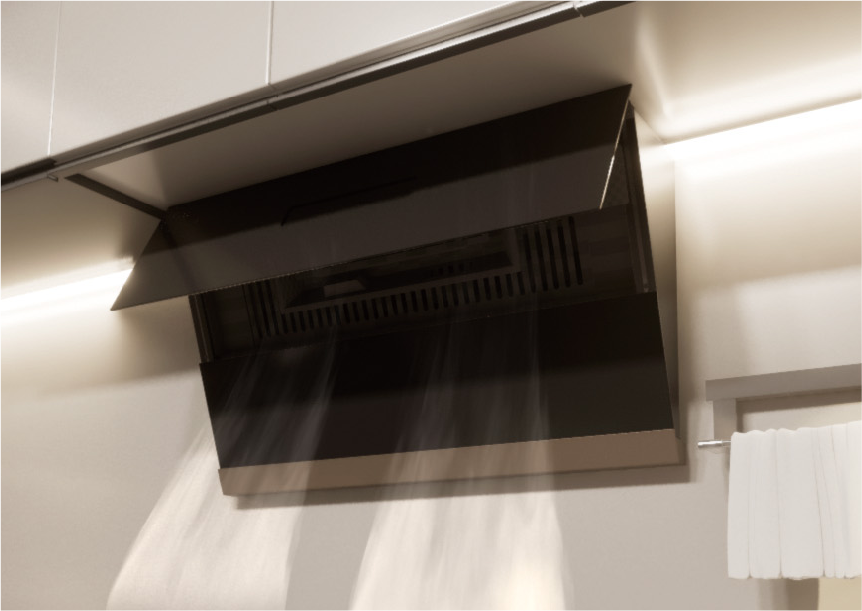

• Intake shutter closes when operation is stopped

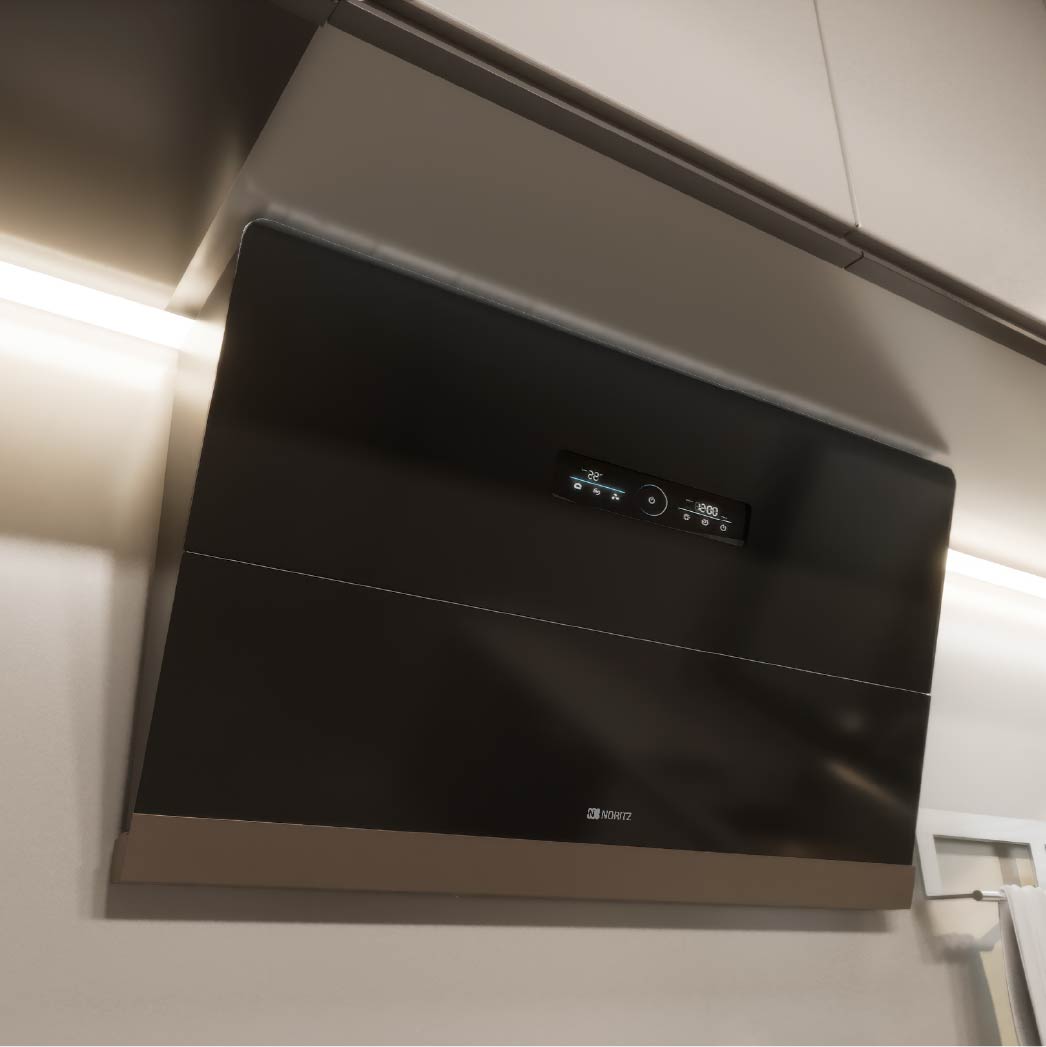

  Designed so that the inside of the range hood is not visible

  When the intake shutter is in the closed position, it makes the kitchen look sleeker and more stylish.

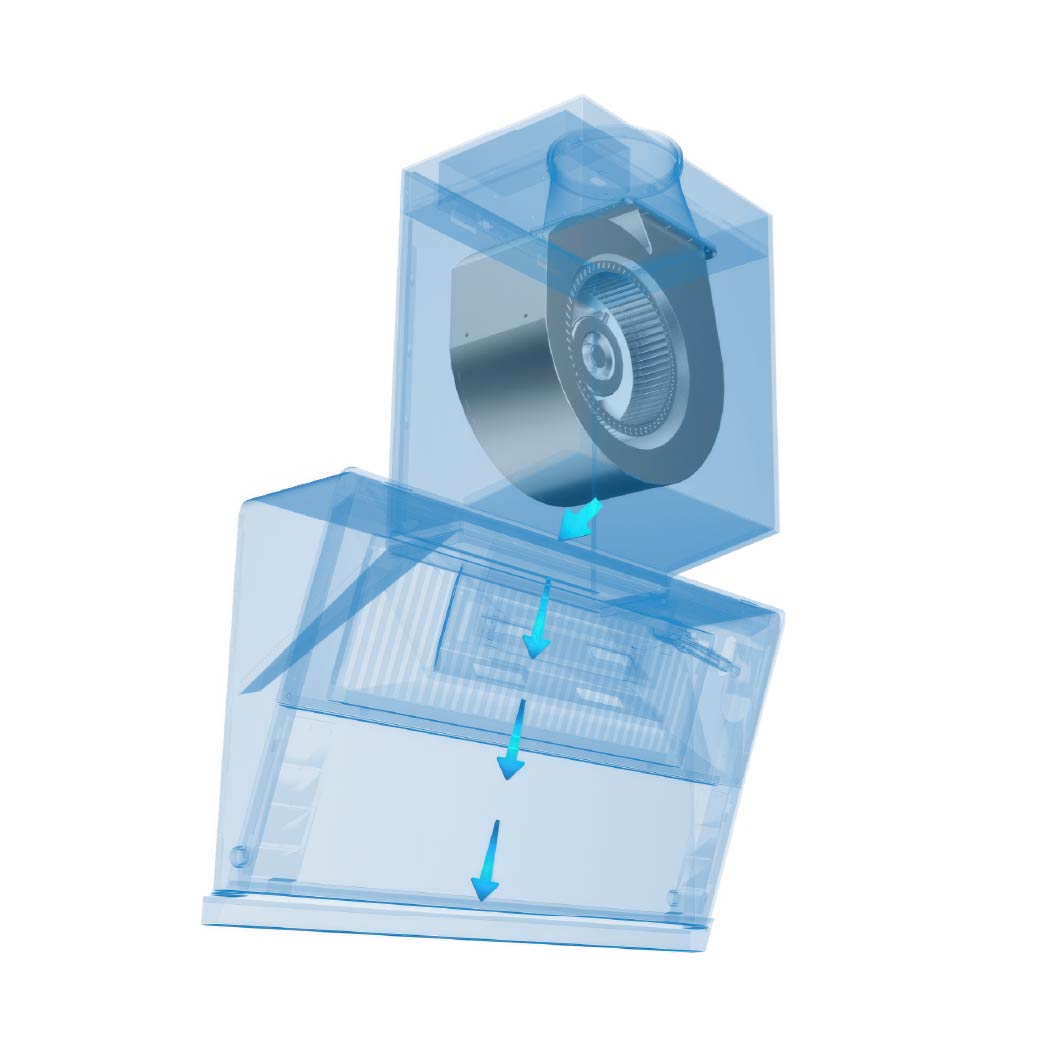

• Features an automatic cleaning function inside the range hood

  Making housework easy

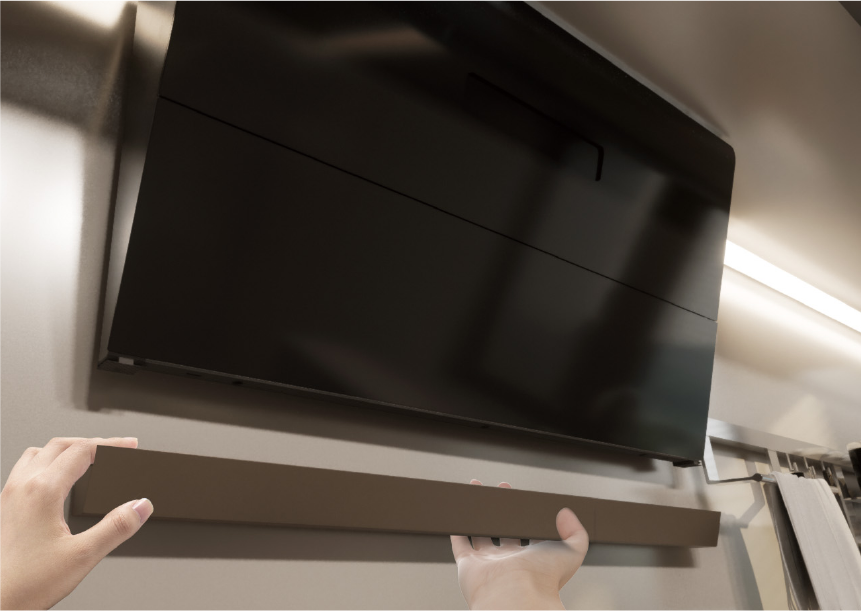

  An automatic cleaning function automatically discharges oily residue that has accumulated inside the fan and other areas into an oil tray. Therefore, the only routine maintenance needed is to clean the oil tray.

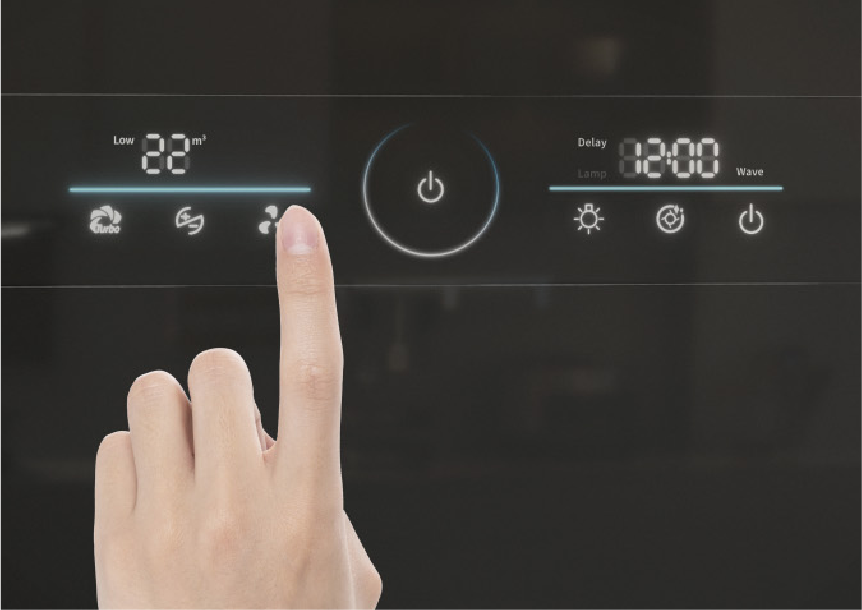

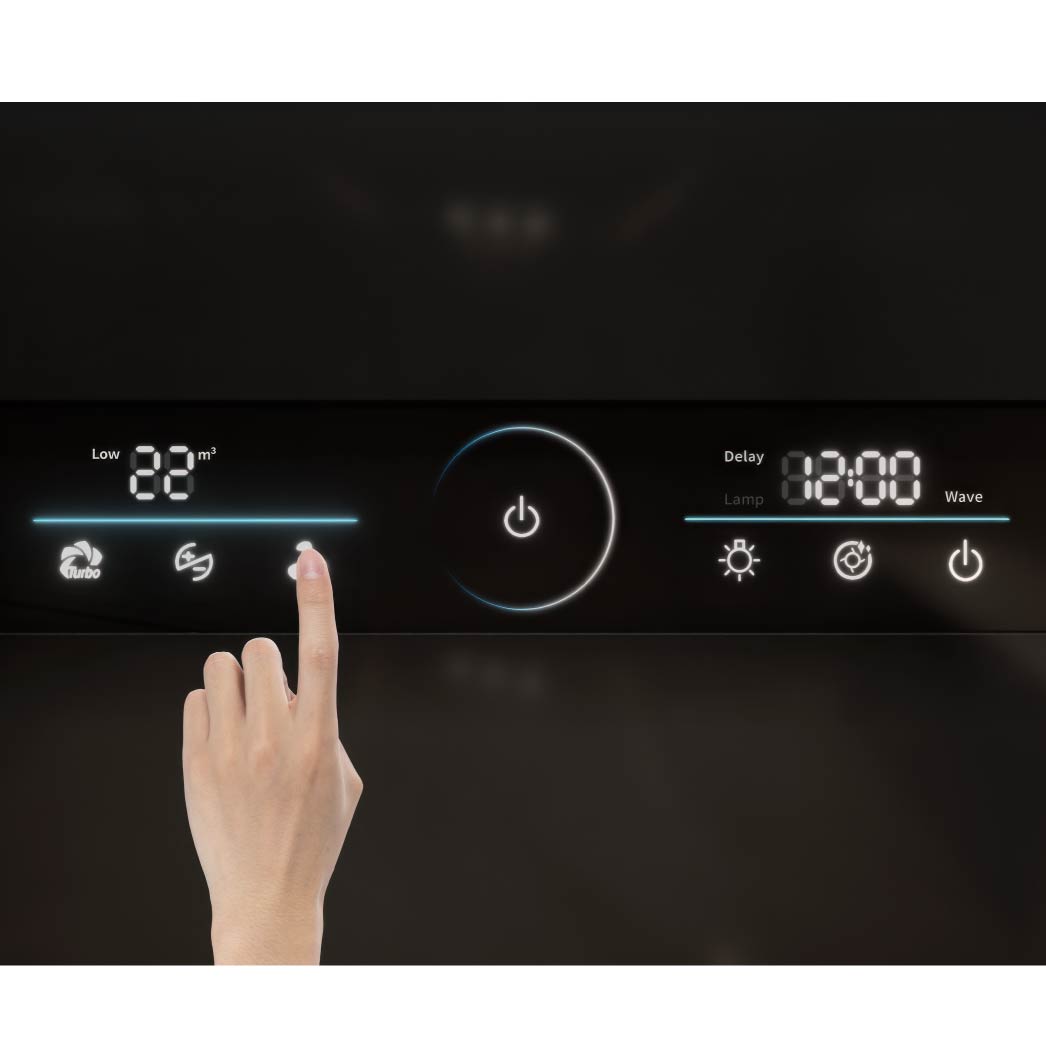

• Touch panel offers easy adjustment of settings



CR-BA501A

• Operation	Quiet operation (5 m³/min), motion control
  Automatic cleaning	Heater-assisted cleaning
  Front color	Black
  Control panel material	Tempered glass
  Body material	SPCC with coating
  Operation method	Touch panel type / Motion sensor type
  Airflow (High)	18 m³/min
  Airflow (Turbo)	22 m³/min
  Maximum static pressure	400 Pa
  Power source	220 V / 50 Hz
  Drive method	Single motor
  Speed adjustment	Turbo / High / Medium / Low (quiet)
  Lighting method	LED lighting

• Lighting output	2×1.5W
  Motor rated input	300W
  Overall rated input	480W
  Heater output	85W
  Exhaust pipe hood	413×326.5
  Exhaust port diameter	Φ180 mm
  Exhaust pipe material	Aluminum foil
  Exhaust pipe length	1.5 m
  External dimensions	895×326.5×996 mm
  Packing dimensions	916×340.5×1024 mm
  Net weight	25 kg
  Gross weight	30 kg
